Code: AUTOBDSTECM001CABLES
Barcode:
5056597917523
Manufacturer:
OBDSTAR
Loading...

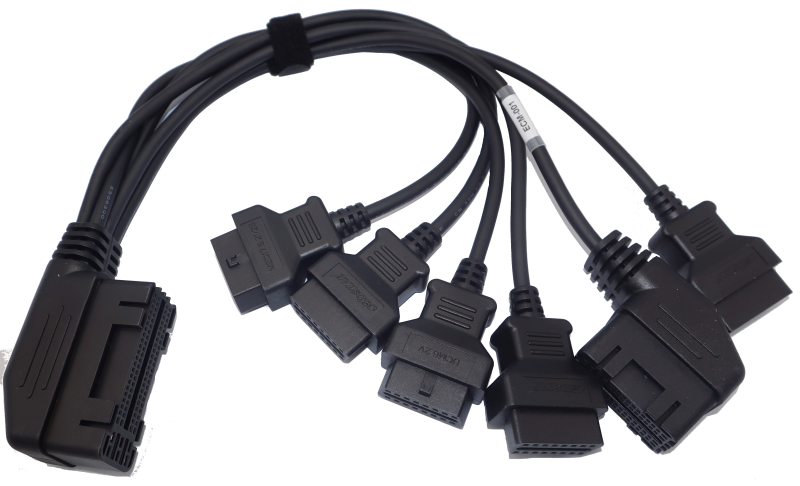

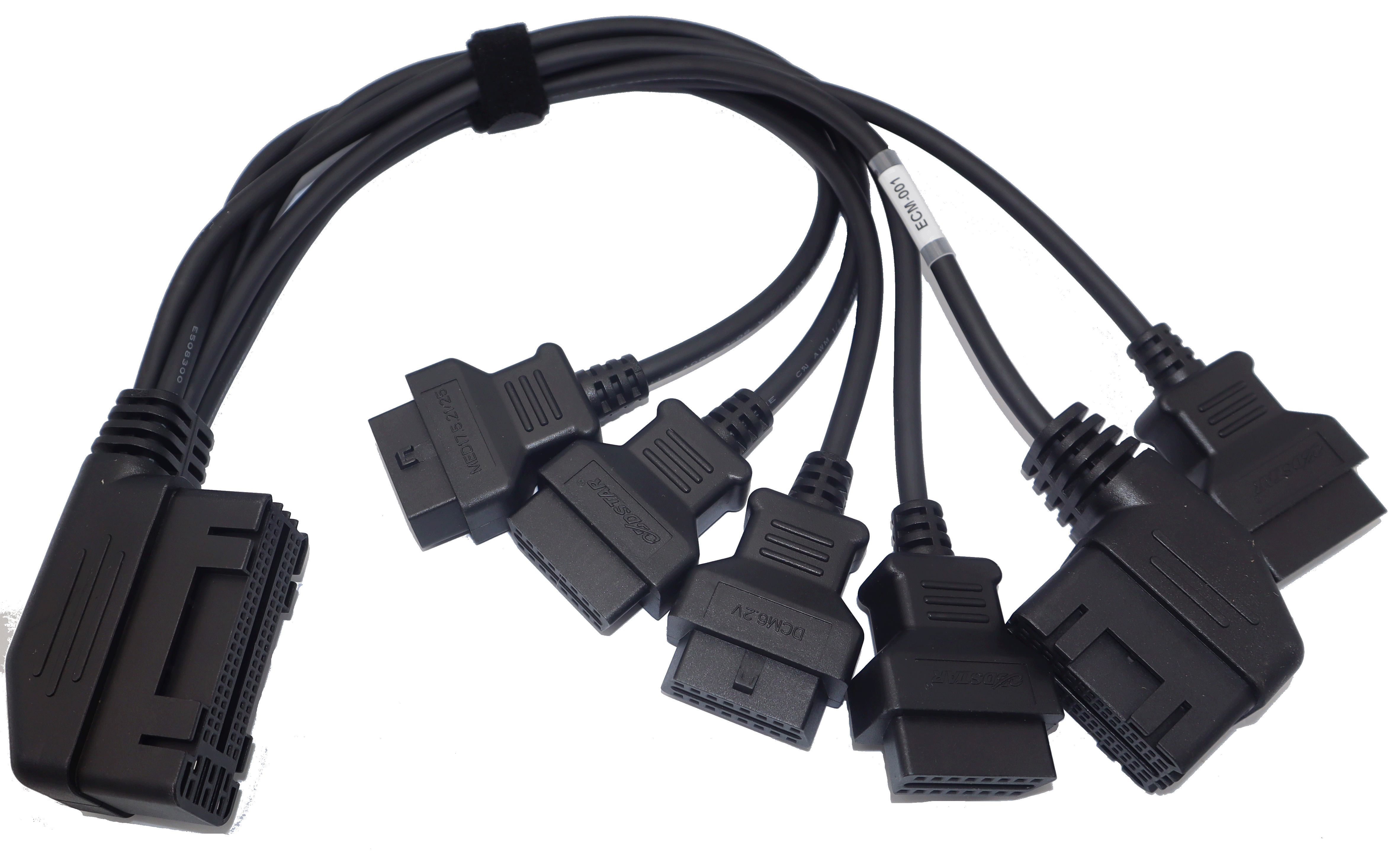

The OBDSTAR ECM-001 Cable Kit is an adapter used with OBDSTAR's ECU programming and cloning tools, such as the X300 Classic G3 and DC706. It enables technicians to perform "bench mode" procedures, which involve reading and flashing an engine control unit (ECU) by directly connecting to the circuit board, rather than through the vehicle's standard diagnostic port.
Primary functions
- Reading IMMO (immobilizer) data: Allows for the extraction of immobilizer-related data, which is essential for key programming and other security-related functions.
- ECU flasher: Facilitates the reading, writing, and cloning of data in the ECU.
Compatible ECUs
The ECM-001 is designed to work with specific ECUs, primarily from manufacturers like Bosch and Continental. Supported models include:
-
DCM6.2V
-
MED17.5.25
-
MED17.5.21
-
ME17.5.22
-
EDC17C64
How it works:
The ECM-001 cable kit provides the necessary connections to access the ECU's internal components. This is in contrast to the standard OBD (On-Board Diagnostics) connection, which works for many functions but cannot access the deepest levels of data required for full cloning and immobilizer work. By using bench mode with this cable, a technician can perform tasks such as:
- ECU cloning: Transferring all data from a damaged ECU to a replacement unit.
- Recovery: Restoring a corrupted ECU.
- Data processing: Performing other advanced operations on the ECU's data.
Important considerations
- Additional hardware: The OBDSTAR ECM-001 Cable Kit is an adapter used with OBDSTAR's ECU programming and cloning tools, such as the G3 and DC706. It enables technicians to perform "bench mode" procedures, which involve reading and flashing an engine control unit (ECU) by directly connecting to the circuit board, The ECM-001 is an accessory cable and requires a compatible OBDSTAR tool, such as the G3 or DC706, to function. rather than through the vehicle's standard diagnostic port.
- Not for all ECUs: This cable kit supports a specific list of ECUs. For other models, different adapters like the MP001 may be needed.
- Safety: The process of bench flashing requires careful handling and adherence to wiring diagrams to avoid damaging the ECU.
